Description

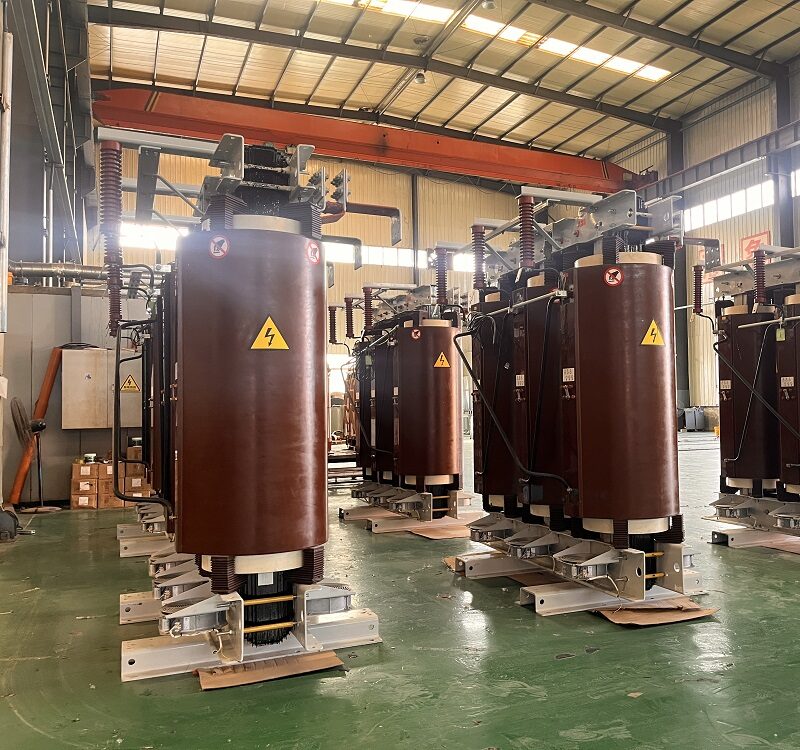

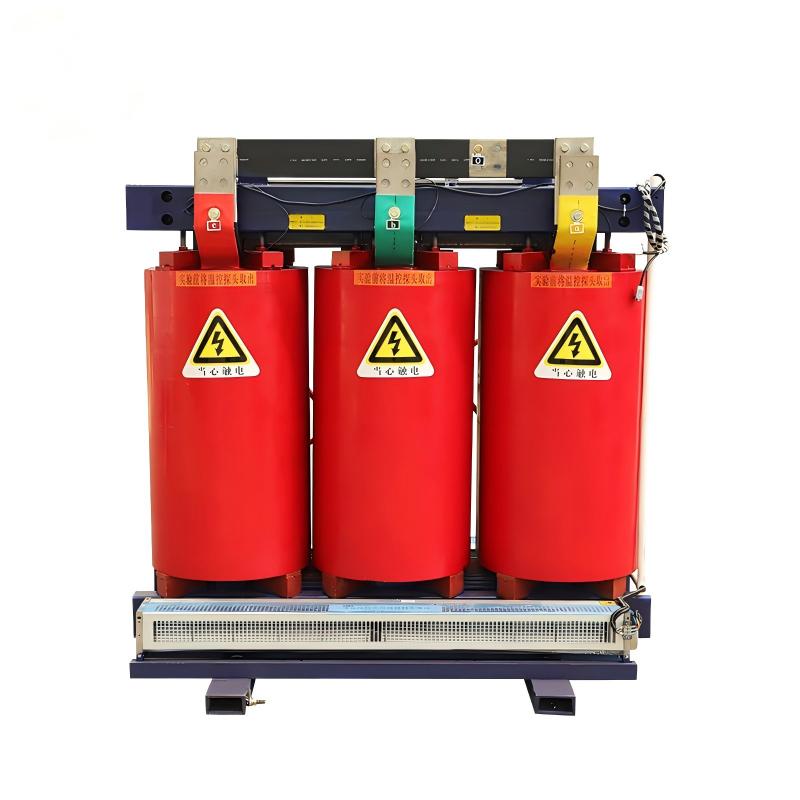

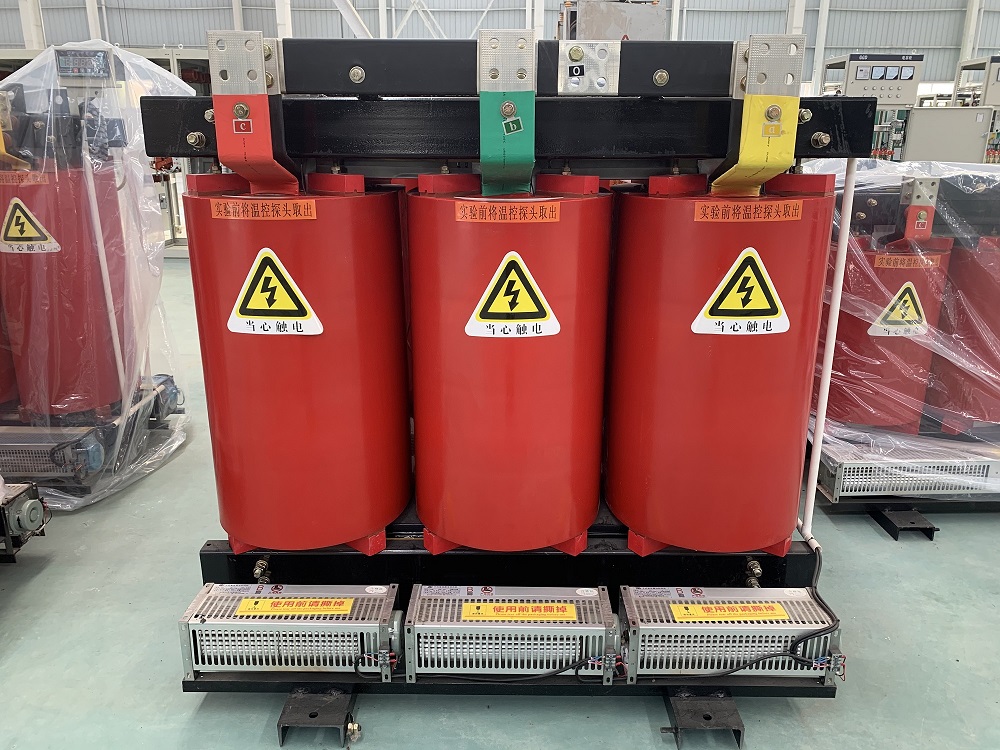

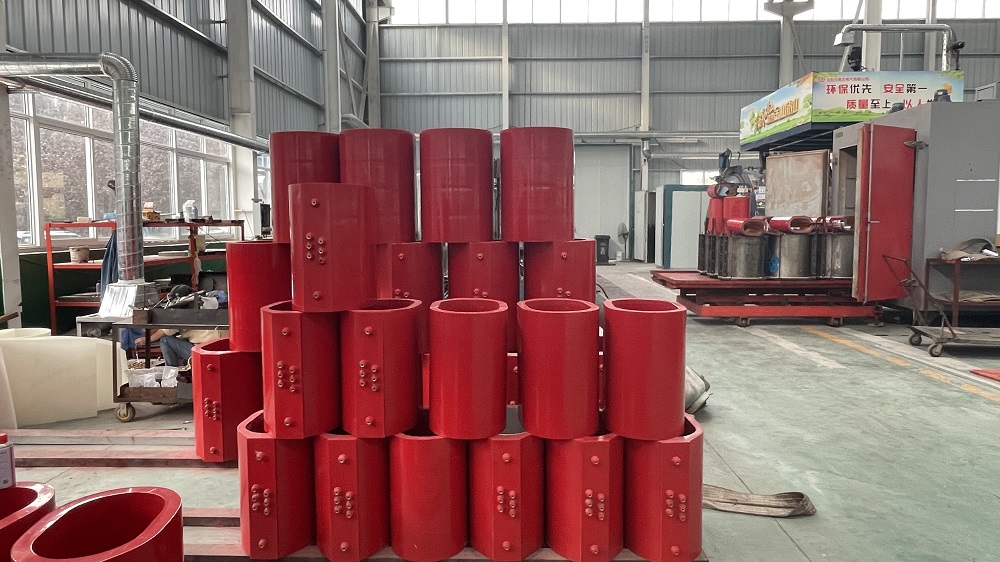

SCB series cast resin dry transformer is cast under vacuum with thin insulating bands automatically. The core is made of high permeable grain orientated silicon sheet and cast with imported epoxy resin. Additionally, HV winding can also be wound from insulated by an inter-layer film, pre-impregnated with heat-activated epoxy resin. The ends of the windings are protected and insulated using Class F materials.
With outstanding resistance to harsh industrial atmospheres, excellent dielectric withstand and very good resistance to short-circuit conditions are ideal for industrial and commercial use.
