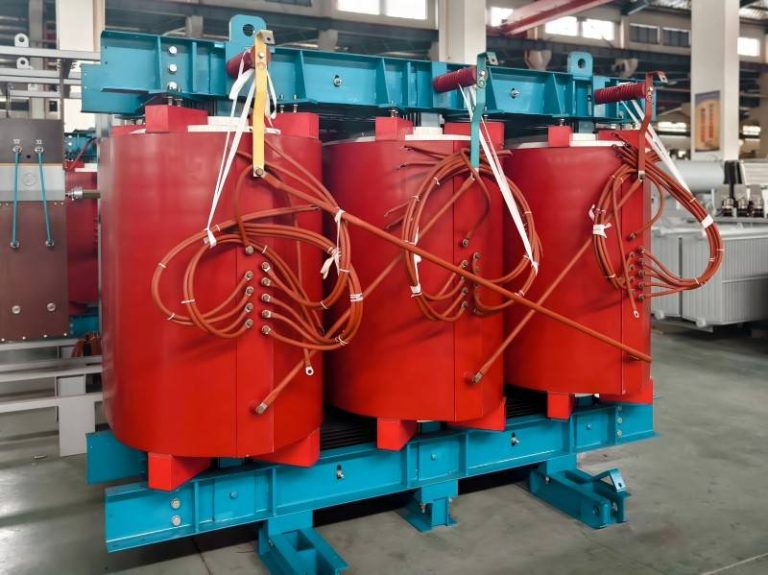

1250KVA 33KV Dry Type Transformer

  • Model: MPESCB10-1250-33
  • Capacity: 1250kVA
  • Primary voltage: 33KV
  • Secondary voltage: 400V
  • Coil material:  Copper
  • Without Enclosure
Share

Description

We were pleased to deliver a 1250kVA 33kV dry-type transformer to Mozambique. This dry-type transformer has a rated capacity of 1250 kVA, a primary voltage of 33kV, and a secondary voltage of 400V.

The 33kv cast resin dry transformer is safe, flame retardant, non-polluting and can be installed directly in load centres. This transformer is maintenance-free, easy to install, has a low overall operating cost, low loss, good moisture-proof performance, can operate normally under 100% humidity, can be put into operation without pre-drying after shutdown, has low partial discharge, low noise, strong heat dissipation ability, and can operate at 120% rated load under forced air cooling conditions.

The 33kv cast resin dry transformer is designed for load power supply in heavy load centres. The epoxy-resin dry-type transformer uses insulating materials such as glass fibre to safely isolate the power distribution system from all flammable factors. This allows the epoxy-resin dry-type transformer to work normally at high temperatures .

Technical Parameters

1250kVA 33kV Dry Type Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPESCB10-1250-33
Country of OriginChina
TypeThree phase cast resin dry transformer
Related capacity1250kVA
Primary voltage33kV
Secondary voltage400V
Vector groupDyn11
Frequency50hz
Outer enclosureWithout
Cooling methodAN/AF
Load loss12670W
No-load loss2800W

FAQ

Q: What is the delivery lead time for this transformer?

A: 20~30 days after buyer confirms the drawing. For large quantity, more than 50 units, usually 30~90 days.
