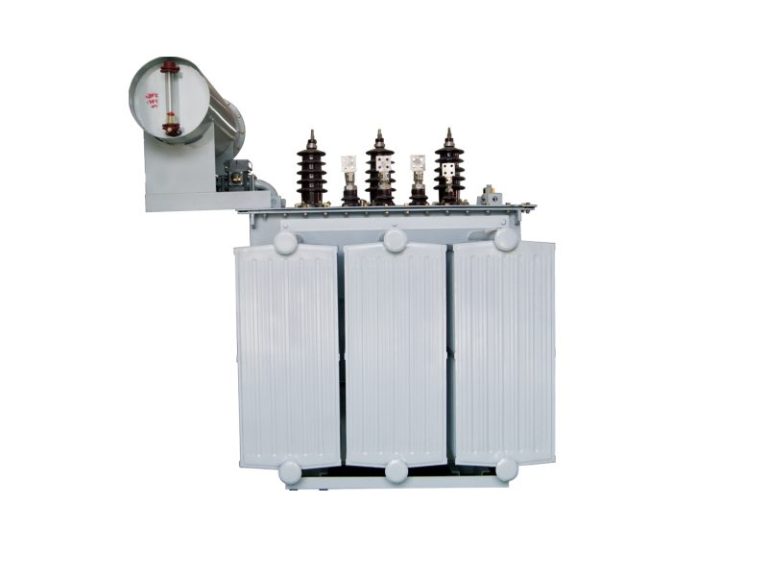

1600kVA 20kV Oil Immersed Distribution Transformer

  • Model: MPES11-1600-20
  • Capacity: 1600KVA
  • Primary Voltage: 20KV
  • Secondary Voltage: 400V
  • Brand: Miracle
Share

Description

Miracle PE delivered two 1600kVA 20kV oil immersed distribution transformer to Jordan.

Our oil distribution transformer is designed with advanced technology, using high-quality materials and components, reliable quality and long operation time. It also has the following advantages.

  • Robust Construction: Corrosion-resistant tank with radiators for optimized heat dissipation.
  • Safety: Overload protection, pressure relief valve, and relay.
  • Environmental Compliance: PCB-free oil, recyclable materials.

Miracle ensures that every transformer we deliver has passed the comprehensive acceptance test, and the design of the transformer complies with the IEC60076 international standard.

Technical Parameters

1600kVA 20kV Oil Immersed Distribution Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPES11-1600-20
Country of OriginChina
TypeThree Phase Oil Immersed Distribution Transformer
Winding materialCopper
Related capacity1600KVA
Primary voltage20000
Secondary voltage400
Vector groupDyn11
Frequency50hz
Transformer oilMineral Oil
Cooling methodONAN
Impedance voltage5.99%
Load loss16000W
No-load loss1630W
Tap changeroff-load
Tap range HV±2×2.5%
Manufacturing standardsIEC60076

FAQ

Q: What is the delivery lead time for this transformer?
A: 20~30 days after buyer confirms the drawing. For large quantity, more than 50 units, usually 30~90 days.

Q: Does it support custom voltage ratios?
A: Yes, tailored configurations (e.g., 20kV/0.415kV) upon request.
