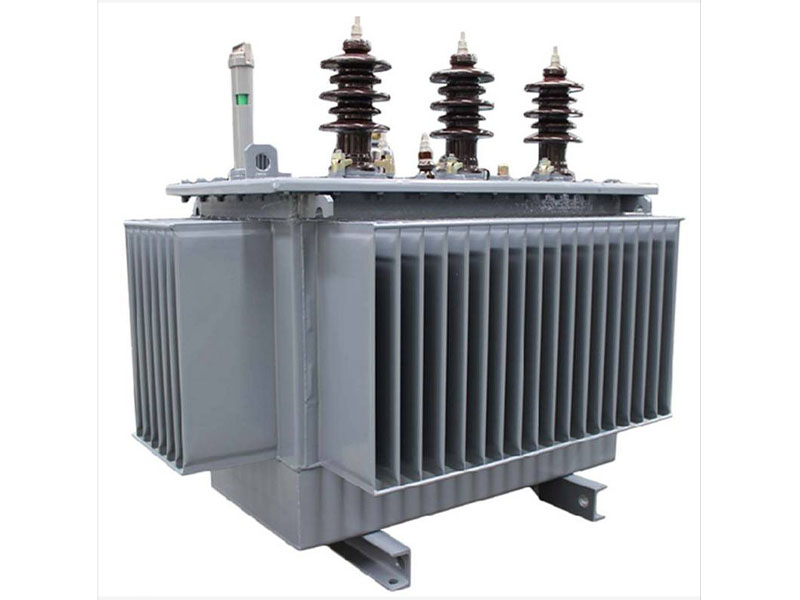

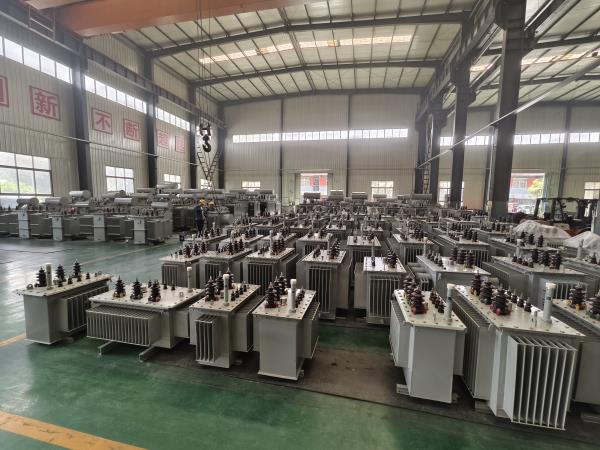

22KV Oil Immersed Distribution Transformer

Model: S11,S13,S20 Series
Capacity: 50KVA to 10000kVA
Voltage: 20KV to 22KV
Coil material: Full Copper or Aluminum
Insulation Oil: Mineral Oil, Vegetable Oil, FR3
Color: RAL7032 or custom

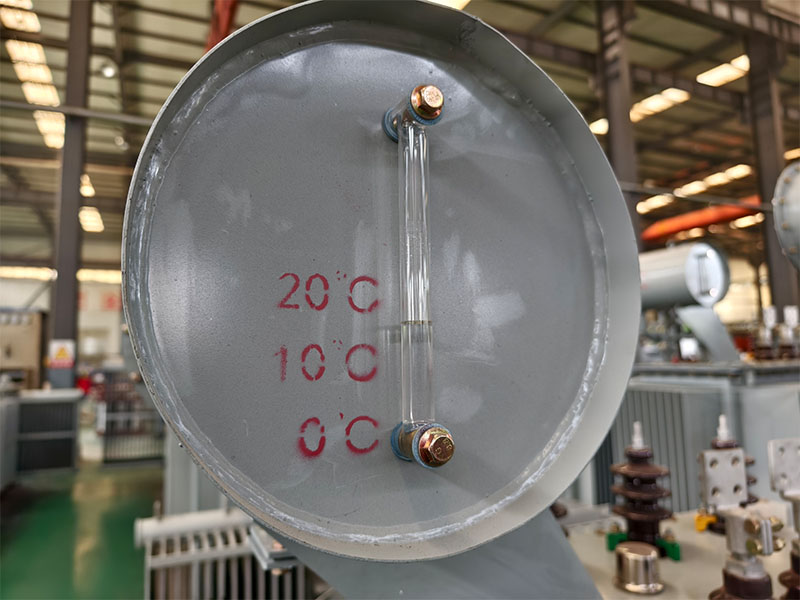

Description

A 22kV oil-immersed transformer is a sealed transformer that is fully filled with oil in the box. The transformer can reduce the 20kV to 24kV voltage to the 230/400V voltage used by the user. This type of transformer is typically three-phase, with a maximum rated capacity of 2500kVA.

This type of transformer is typically employed in power supply and distribution systems in industrial and mining enterprises and civil buildings.

Parameters （22KV oil immersed transformer）

22KV Oil Immersed Transformer Technical Parameters
Rated Capacity KVA	Voltage Combination			Connection Symbol	Off-load Loss(KW)	On-load Loss(KW) (75℃)	No-load current(%)	Short Circuit Impendance (%)	Weight(KG)		Dimensions(mm)
Rated Capacity KVA	High Voltage (KV)	Tapping Range (%)	Low Voltage (KV)	Connection Symbol	Off-load Loss(KW)	On-load Loss(KW) (75℃)	No-load current(%)	Short Circuit Impendance (%)	Oil	Total	Length	Width	Height
30	20 22 24	±5 ±2×2.5	0.23 0.38 0.4 0.44 0.48 0.6	Dyn11 Yyn0	0.1	0.66	2.1	5.5	75	350	1040	600	1040
50					0.13	0.96	2		90	445	1040	600	1085
63					0.15	1.145	1.9		100	500	1080	620	1090
80					0.18	1.37	1.8		105	535	1110	640	1110
100					0.2	1.65	1.6		120	580	1235	800	1210
125					0.24	1.98	1.5		125	660	1245	810	1220
160					0.29	2.42	1.4		130	700	1265	830	1230
200					0.33	2.86	1.3		195	835	1140	720	1330
250					0.4	3.35	1.2		410	1110	1325	850	1490
315					0.48	4.01	1.1		420	1610	1380	850	1725
400					0.57	4.73	1		430	1720	1400	885	1810
500					0.68	5.66	1		480	1940	1500	890	1850
630					0.81	6.82	0.9	6	490	2055	1645	970	1850
800					0.98	8.25	0.8		520	2600	1755	1025	1890
1000					1.15	11.33	0.7		585	2870	2270	1060	1890
1250					1.35	13.2	0.6		620	3560	2400	1120	2040
1600					1.63	15.95	0.6		690	4260	2460	1220	2085
2000					1.95	19.14	0.6		860	5550	2480	2400	2940
2500					2.34	22.22	0.5		990	6320	2480	2620	3040
