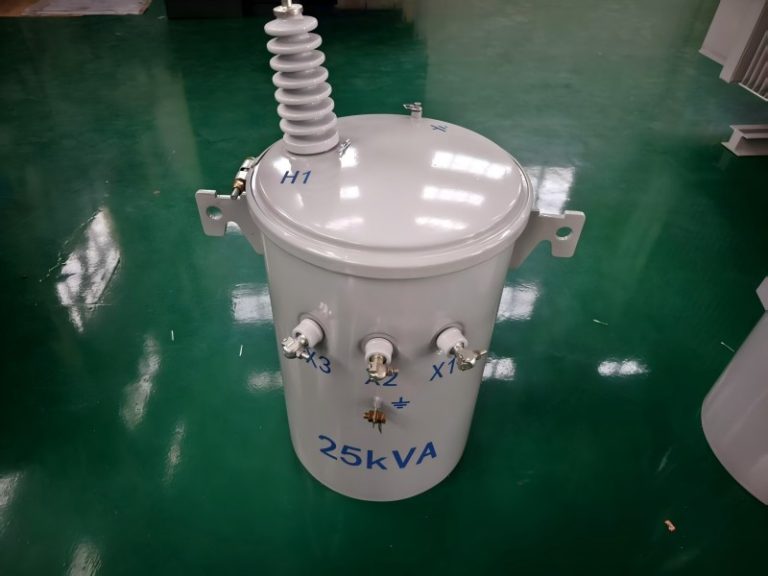

25kVA 13.2kV 0.24kV Single Phase Pole Mounted Transformer

  • Model: MPED11-25/13.2
  • Type: Single phase pole mounted transformer
  • Capacity: 25kVA
  • Primary voltage: 13200GrdY/7620V
  • Secondary voltage: 120/240V
Share

Description

Miracle PE's 25kVA 13.2kV 0.24kV single phase pole mounted transformer is designed with advanced technology and adopts high quality materials and components, resulting in reliable quality and long service life.

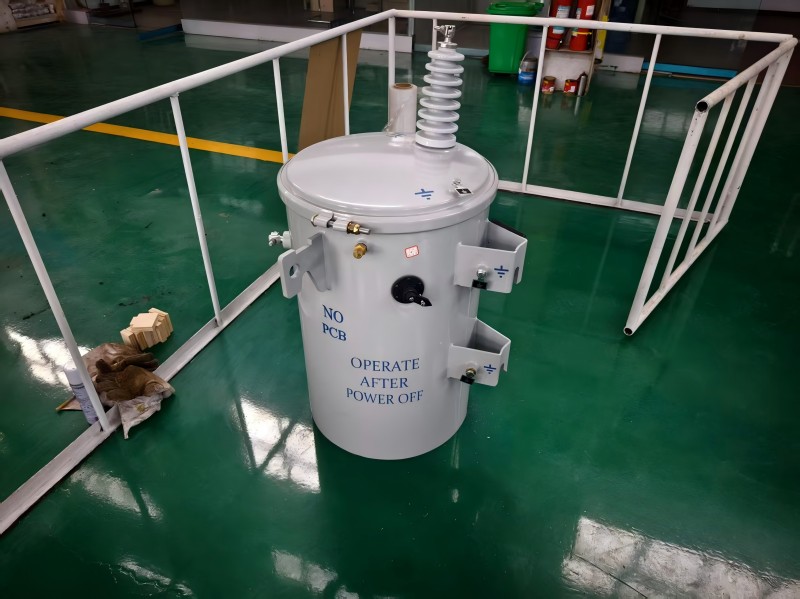

The single phase pole mounted transformer is a cylindrical sealing structure. Each one is fixed with grounding devices, hooks, supporting lugs and one or two high voltage bushings on the cover, low voltage bushings on the wall of the tank and eyebolt, connecting terminals.

The single-phase pole-mounted transformers are characterised by small volume, low infrastructure investment, reduced low-voltage supply radius and over 60% low-voltage line loss. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and easy maintenance. Suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, can also be used for energy-saving transformation of railway and urban power grid.

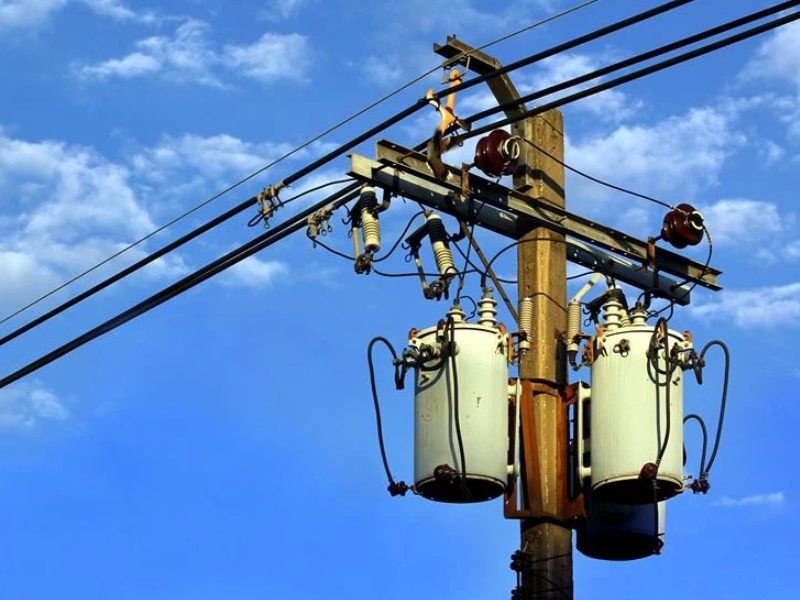

single phase pole mounnted transformer
single phase pole mounnted transformer

Technical Parameters

25kVA 13.2kV 0.24kV Single Phase Pole Mounted Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPED11-25/13.2
Country of OriginChina
TypeSingle phase pole mounted transformer
Related capacity25KVA
Primary voltage13200GrdY/7620V
Secondary voltage120/240V
Vector groupIi0
Frequency60hz
Winding materialCopper
Cooling methodONAN
Load loss290w
No-load loss80w


FAQ

Q: How long is  your Warranty period?

A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly

Q: How’s your quality?

A: We have a strict quality control system at factory. From raw material, process of production, and test, each step will be tested. After assemble finished, each transformer will be tested, and after result okay, will allow to delivery.
