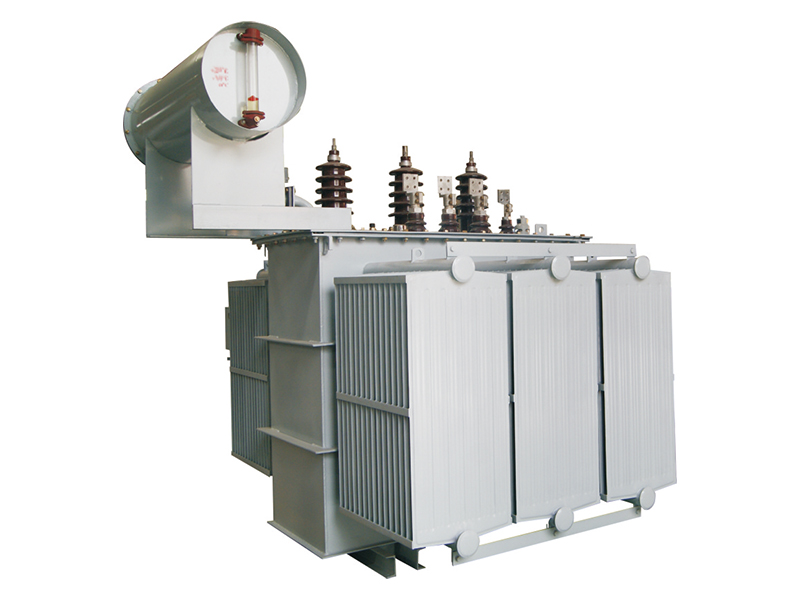

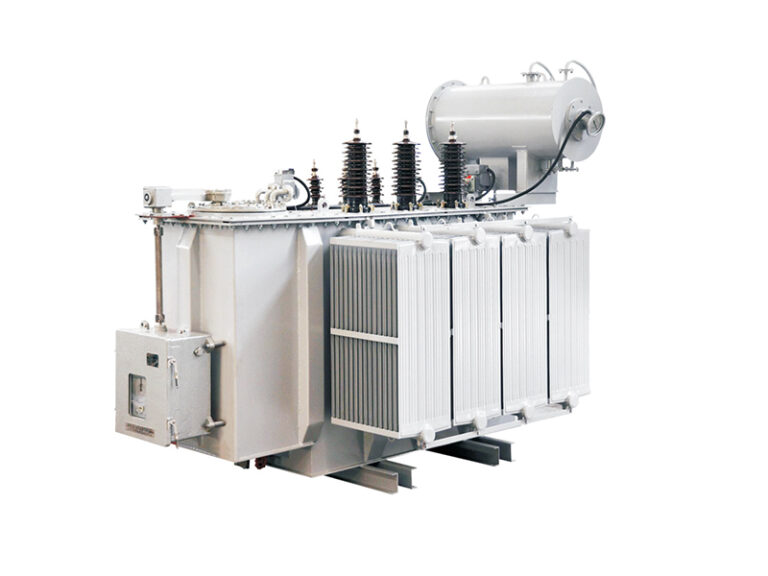

The 35kV series oil-immersed power transformer is relatively advanced in design and has been greatly improved and enhanced in materials, structure and technology. The high and low voltage clamps are tightened by steel straps or top and side beams to form a solid frame structure, which enhances the core clamping force and the ability to withstand transportation impact. It has strong short circuit resistance, beautiful appearance, reliable operation, low loss and low noise.
| 35KV Oil Immersed Transformer Technical Parameters | |||||||||||||
| Rated Capacity KVA | Voltage Combination | Connection Symbol | Off-load Loss(KW) | On-load Loss(KW) (75℃) | Short Circuit Impendance(%) | no-load current (%) | Weight(KG) | Dimensions(mm) | |||||
| High Voltage (KV) | Tapping Range (%) | Low Voltage (KV) | Oil | Total | Length | Width | Height | ||||||
| 50 | 30 33 35 | ±5 ±2×2.5 | 0.23 0.38 0.4 0.44 0.48 | Dyn11 Yyn0 | 0.166 | 1.285 | 6.5 | 1.3 | 165 | 535 | 1120 | 670 | 1235 |
| 80 | 0.209 | 1.734 | 1.3 | 195 | 670 | 1120 | 700 | 1270 | |||||
| 100 | 0.244 | 2.138 | 1.1 | 210 | 745 | 1120 | 720 | 1285 | |||||
| 125 | 0.286 | 2.552 | 1.1 | 215 | 790 | 1160 | 715 | 1330 | |||||
| 160 | 0.3 | 3.027 | 1 | 245 | 970 | 1245 | 785 | 1365 | |||||
| 200 | 0.361 | 3.649 | 1 | 360 | 1050 | 1245 | 795 | 1380 | |||||
| 250 | 0.424 | 4.294 | 0.95 | 285 | 1175 | 1335 | 880 | 1395 | |||||
| 315 | 0.51 | 5.2 | 0.95 | 310 | 1305 | 1380 | 920 | 1420 | |||||
| 400 | 0.613 | 6.171 | 0.85 | 355 | 1540 | 1510 | 1010 | 1455 | |||||
| 500 | 0.716 | 7.452 | 0.85 | 390 | 1760 | 1120 | 1105 | 1502 | |||||
| 630 | 0.897 | 8.65 | 0.65 | 430 | 2000 | 1120 | 1210 | 1527 | |||||
| 800 | 1.042 | 10.181 | 0.65 | 525 | 2545 | 2080 | 1215 | 1770 | |||||
| 1000 | 1.22 | 12.375 | 0.65 | 600 | 2885 | 2125 | 1270 | 1850 | |||||
| 1250 | 1.457 | 15.119 | 0.6 | 690 | 3275 | 2150 | 1300 | 1950 | |||||
| 1600 | 1.796 | 18.337 | 0.6 | 840 | 3955 | 2310 | 1355 | 2070 | |||||
| 2000 | 2.105 | 21.122 | 0.55 | 1010 | 4775 | 2390 | 1395 | 2170 | |||||
| 2500 | 2.514 | 25.296 | 0.55 | 1145 | 5550 | 2515 | 1435 | 2300 | |||||
