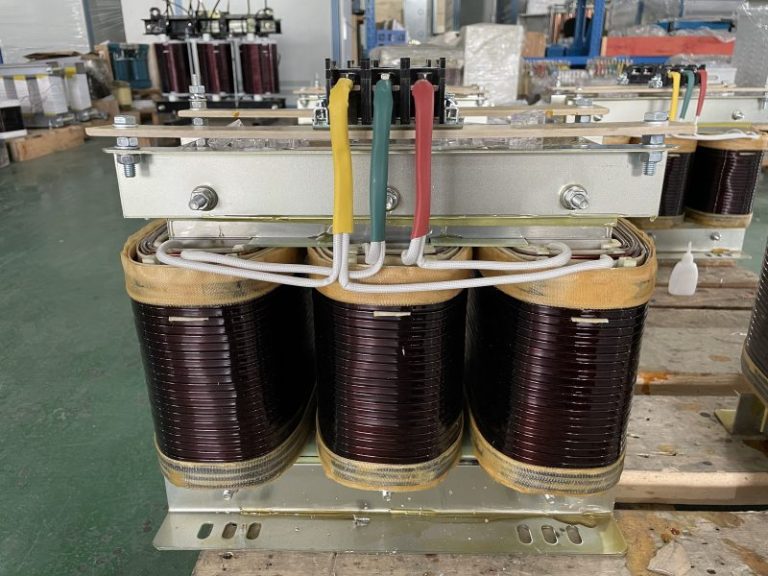

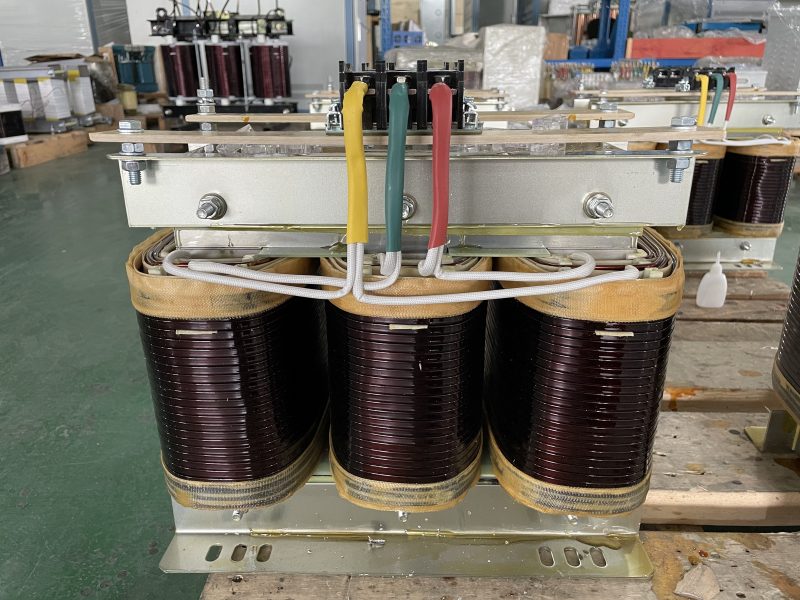

45kVA 400V 208V Isolation Dry Type Transformer

  • Model: MPESG-45KVA
  • Capacity: 45kVA
  • Primary voltage: 400V±2.5%,±5%,-7%,-10%
  • Secondary voltage: 208Y/120V
Share

Description

In May, we were pleased to deliver a 45kVA isolation dry-type transformer to Saudi Arabia. This dry-type transformer has a rated capacity of 45 kVA, a primary voltage of 400V, and a secondary voltage of 208/120V.

Three phase Isolation Transformer has primary and secondary windings that are physically separated from each other. It allows AC power to be taken from one device and fed into another without electrically connecting the two circuits. The transformer blocks transmission of DC currents from one circuit to the other, but allow AC signals to pass, and also blocks interference caused by ground loops. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment.

We guarantee that each delivered unit has undergone comprehensive acceptance testing. Our products are now operational in over 30 countries worldwide. We strive to be your most reliable supplier and your most valuable business partner.

Technical Parameters

45kVA 400V 208V Isolation Dry Type Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPESG-45KVA
Country of OriginChina
TypeThree phase isolation dry type transformer
Related capacity45KVA
Primary voltageAC400V±2.5%,±5%,-7%,-10%
Primary current65.0A
Secondary voltage208Y/120V
Secondary current124.9A
Vector groupDyn1
Frequency60hz
Protection levelNEMA2
Cooling methodAN
Working temperature15℃~40℃
Altitude≤1000M
Relative humidity<90%

FAQ

Q: How long is  your Warranty period?

A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly

Q: How’s your quality?

A: We have a strict quality control system at factory. From raw material, process of production, and test, each step will be tested. After assemble finished, each transformer will be tested, and after result okay, will allow to delivery.
