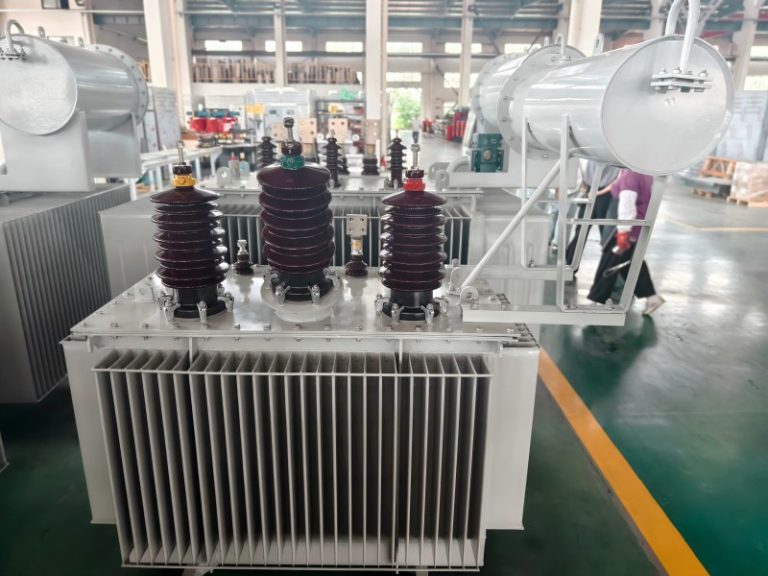

500KVA 33KV Oil Immersed Distribution Transformer

  • Model: MPES11-500-33
  • Capacity: 500KVA
  • Primary Voltage: 33KV
  • Secondary Voltage:0.415KV
Share

Description

Miracle PE delivered one 500KVA 33kV oil immersed transformer to United Arab Emirates.

The core is made of high-quality, high-performance silicon steel sheets, with low no-load loss.

The high-voltage winding adopts a layered structure, with high mechanical strength, balanced distribution, and strong short-circuit resistance.

The overall structure is fully sealed, and the vacuum oil filling process is adopted to ensure that the transformer oil is isolated from the outside air, prevent oil aging, and improve the reliability of transformer operation.

The product is equipped with a pressure relief valve, signal thermometer, gas relay, etc. to ensure the safe operation of the transformer.

The corrugated oil tank is used, which is simple to process, has high mechanical strength, good welding effect, no leakage, and good heat dissipation capacity.

It has beautiful appearance and small size, and is widely used in urban and rural power grids.

Technical Parameters

500KVA 33kV Oil Immersed Distribution Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPES11-500-33
Country of OriginChina
TypeThree Phase Oil Immersed Distribution Transformer
Related capacity500KVA
Primary voltage33KV
Secondary voltage0.415KV
Tap changerOff-load
Tap range HV±2×2.5% ( 5 positions)
Winding materialCopper
Vector groupDyn11
Frequency50hz
Transformer oilMineral Oil
Cooling methodONAN
Impedance voltage6.5%
Load loss6910W
No-load loss680W

FAQ

Q: What is the delivery lead time for this transformer?

A: 40~50 days after buyer confirms the drawing. Because MR on-load tap changer need to be customized by manufacturers.

Q: How long is  your Warranty period?

A: Up to 24 months quality guarantee period.
