Miracle PE's 50KVA 10KV oil immersed transformer is made of high-quality materials and adopt the latest technology, with more reliable performance and structure, high efficiency and energy saving, and favorable price.
The core is made of high-quality, high-performance silicon steel sheets, with low no-load loss.
The high-voltage winding adopts a layered structure, with high mechanical strength, balanced distribution, and strong short-circuit resistance.
The overall structure is fully sealed, and the vacuum oil filling process is adopted to ensure that the transformer oil is isolated from the outside air, prevent oil aging, and improve the reliability of transformer operation.
The product is equipped with a pressure relief valve, signal thermometer, gas relay, etc. to ensure the safe operation of the transformer.
The corrugated oil tank is used, which is simple to process, has high mechanical strength, good welding effect, no leakage, and good heat dissipation capacity.
It has beautiful appearance and small size, and is widely used in urban and rural power grids.

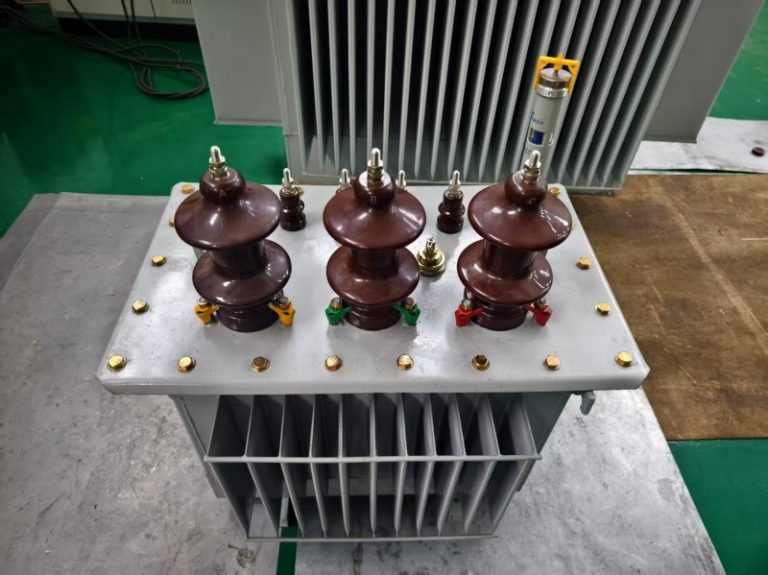

50KVA 10KV Oil Immersed Transformer
| Manufacturer | Henan Miracle Power Equipment Co., Ltd. |
| Model | MPES11-50-10 |
| Country of Origin | China |
| Type | Three Phase Oil Immersed Distribution Transformer |
| Winding material | Copper |
| Related capacity | 50KVA |
| Primary voltage | 10000V |
| Secondary voltage | 400V |
| Vector group | Dyn11 |
| Frequency | 50hz |
| Transformer oil | Mineral Oil |
| Cooling method | ONAN |
| Impedance voltage | 4.0% |
| Load loss | 870W |
| No-load loss | 120W |
| Reference weight | 360kg |
| Reference dimension | 760*810*830mm |
| Manufacturing standards | IEC60076 |
Q: What is the delivery lead time for this transformer?
A: 20~30 days after buyer confirms the drawing. For large quantity, more than 50 units, usually 30~90 days.
Q: How long is your Warranty period?
A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly;
