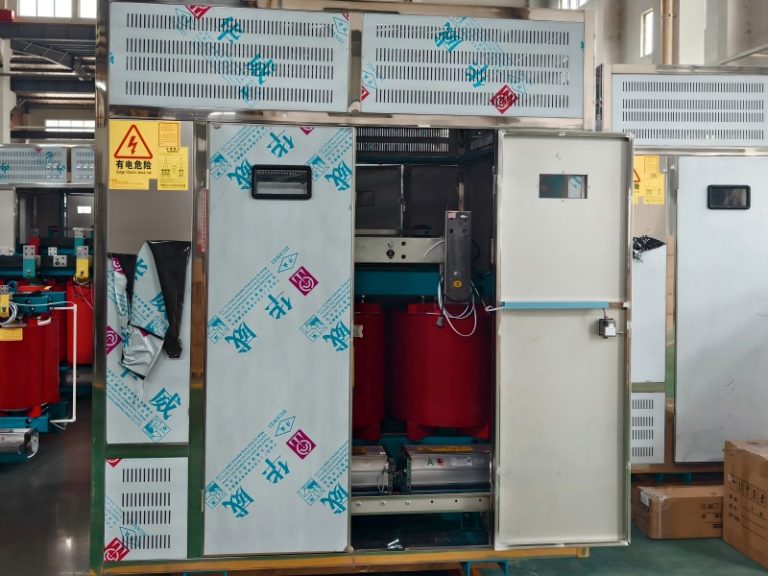

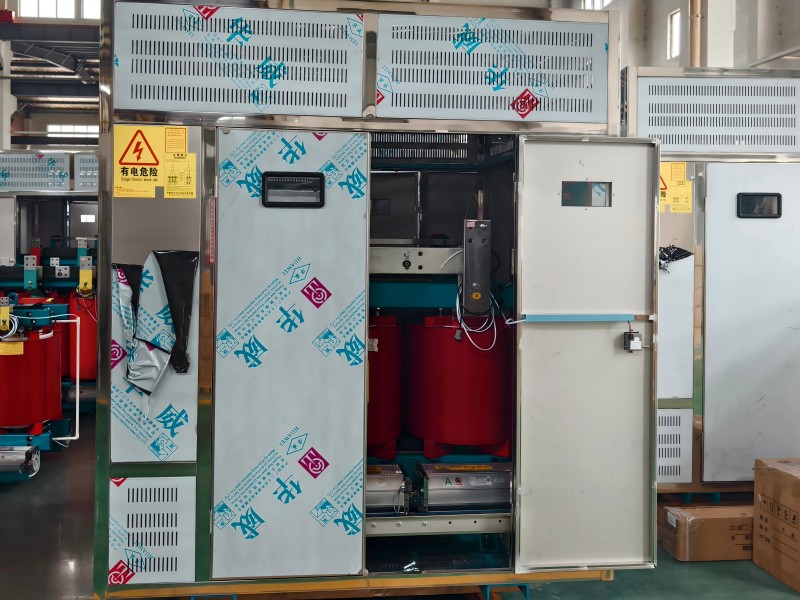

650KVA 11kV Dry Type Transformer

  • Model: MPESCB10-650-11
  • Capacity: 650kVA
  • Primary voltage: 11KV
  • Secondary voltage: 340V
  • Coil material:  Copper
  • With Enclosure
Share

Description

We were pleased to deliver a 650kVA 11kV dry-type transformer to Pakistan. This dry-type transformer has a rated capacity of 650 kVA, a primary voltage of 11kV, and a secondary voltage of 340V.

Product Feature

The Miracle SCB series 11kV cast resin dry transformer is an automatic casting process under vacuum with thin insulating strips.

The core is made from high permeability grain-oriented silicon sheet and cast with epoxy resin.
The high and low voltage windings are cast under vacuum, ensuring that the coil will not absorb moisture.
The insulating materials in the coil, such as glass fibre, are self-extinguishing and will not cause fire from the arc resulting from a short circuit.
Furthermore, the resin does not produce toxic or harmful gases at high temperatures.
Additionally, HV windings can be insulated by an interlayer film pre-impregnated with heat-activated epoxy resin.
The ends of the windings are protected and insulated with Class F materials.
With outstanding resistance to harsh industrial atmospheres, excellent dielectric strength and very good resistance to short circuit conditions, they are ideal for industrial and commercial use.

Technical Parameters

650kVA 11kV Dry Type Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPESCB10-650-11
Country of OriginChina
TypeThree phase cast resin dry transformer
Related capacity650kVA
Primary voltage11kV
Secondary voltage340V
Vector groupDyn11
Frequency50hz
Outer enclosureWith
Cooling methodAN/AF
Load loss5880W
No-load loss1340W

FAQ

Q: What is the delivery lead time for this transformer?

A: 20~30 days after buyer confirms the drawing. For large quantity, more than 50 units, usually 30~90 days.
