750KVA 23KV 0.48GrdY/0.277KV Three Phase Pad Mounted Transformer

  • Model: ZGS11-750/23
  • Type: Three Phase Radial Feed Pad Mounted Transformer
  • Capacity: 750KVA
  • Primary voltage:23kV
  • Secondary voltage:0.48GrdY/0.277 kV
Share

Description

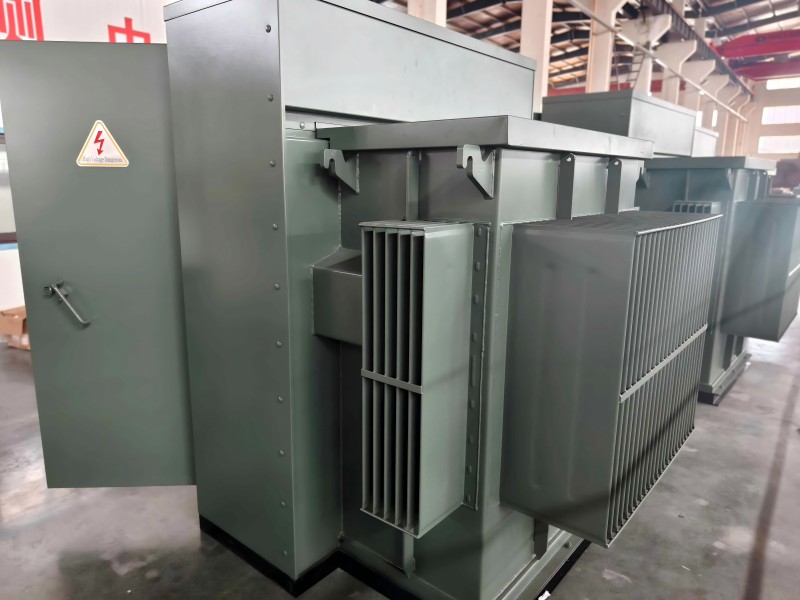

Miracle delivered three 750kVA 23kV Pad Mounted Transformer to Mexico. The rated power of the transformer is 750 kVA, with the primary voltage 23 kV to secondary voltage 0.48GrdY/0.277 kV. The connection group is Dyn1.

Welcome to choose Miracle pad mounted transformer.

  • More compact in design and suitable for Urban Distribution System.
  • Reduced installation footprints compared to Compact Substations and Distribution Transformer.

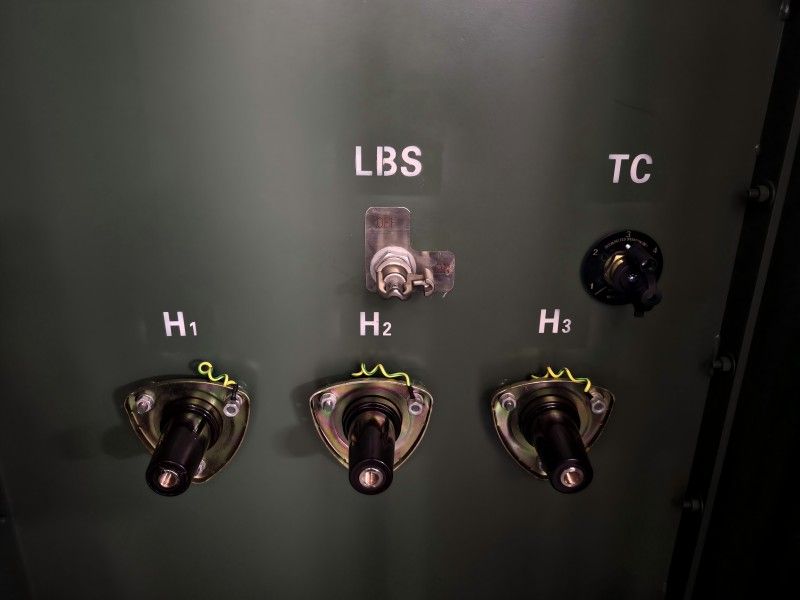

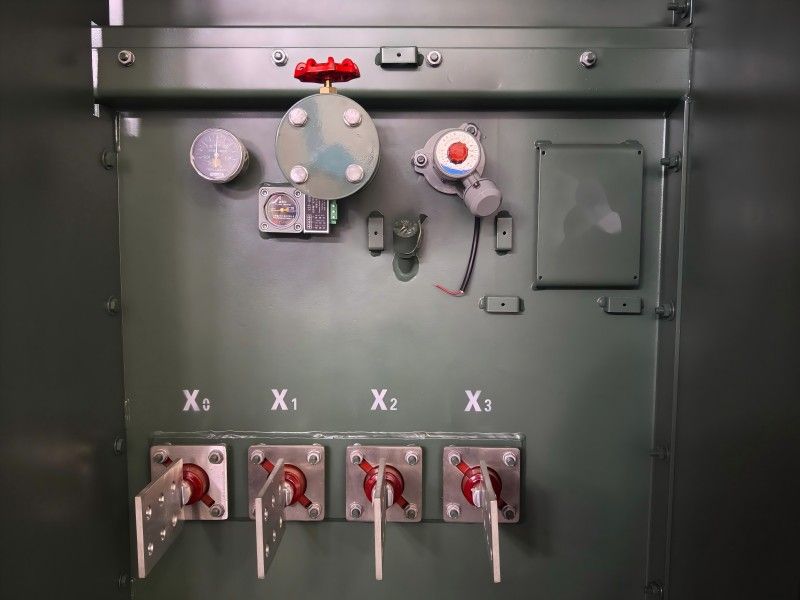

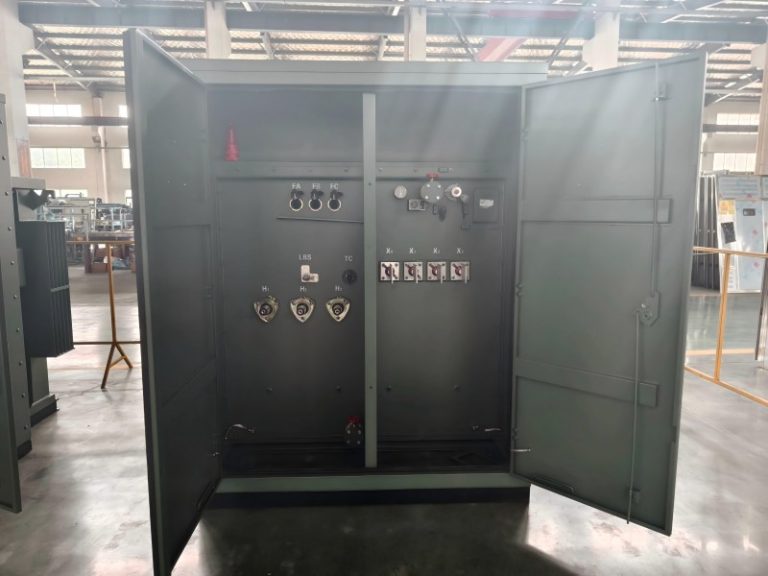

  • HV and LV connections and protections are accessible through front open compartments with interlocking doors.
  • Pad mounted Transformer is fully equipped with HV & LV protections resulting in faster commissioning at site.

Technical Parameters

750KVA-23KV Three Phase Pad Mounted Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelZGS11-Z-750/23
Country of OriginChina
TypeThree Phase Pad Mounted Transformer
Winding materialCopper
Related capacity1600KVA
Primary voltage23kV
Secondary voltage0.48GrdY/0.277kV
Vector groupDyn1
Frequency60hz
Transformer oilMineral Oil
Cooling methodONAN
Impedance voltage5.75%
Load loss8250W
No-load loss980W
Tap changeroff-load
Tap range HV±2×2.5%

Applications

The transformer is very suitable for outdoor installation in urban power grids. It can withstand extreme temperatures (-40°C to +50°C). It is safe, reliable and beautiful, and does not require protective fences.

FAQ

Q: How long is  your Warranty period?

A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly

Q: How’s your quality?

A: We have a strict quality control system at factory.

From raw material, process of production, and test, each step will be tested.

After assemble finished, each transformer will be tested, and after result okay, will allow to delivery.
