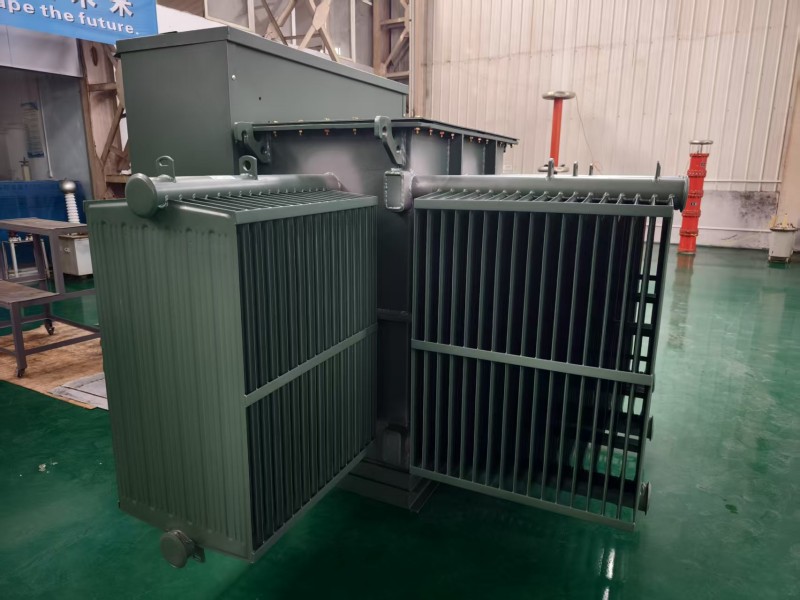

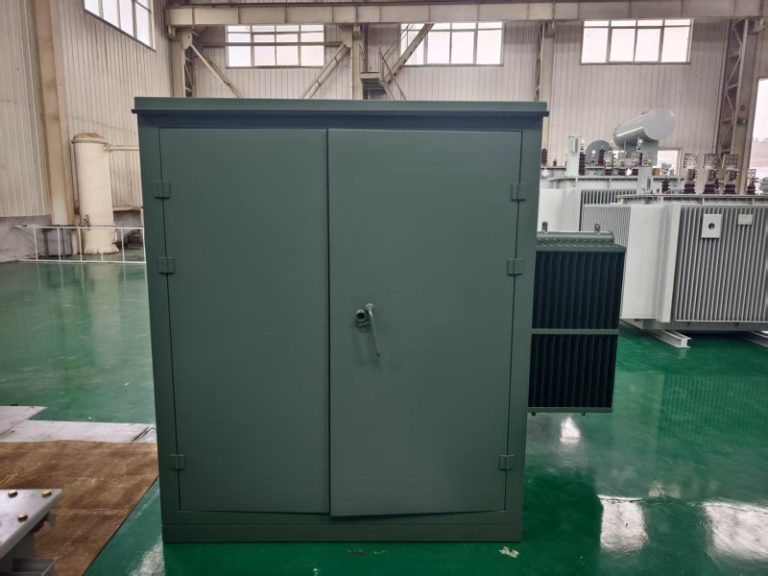

2000kVA 13.8kV 0.415kV Radial Feed Pad Mounted Transformer

  • Model: MPEZGS11-Z-2000/13.8/0.415
  • Capacity: 2000KVA
  • Primary voltage:13.8kV
  • Secondary voltage:0.415 kV
Share

Description

Miracle PE has completed the production of the 2000kva-13.8kv-0.15kv radial feed pad mounted transformer.

Welcome to choose Miracle pad mounted transformer.

  • More compact in design and suitable for Urban Distribution System.
  • Reduced installation footprints compared to Compact Substations and Distribution Transformer.

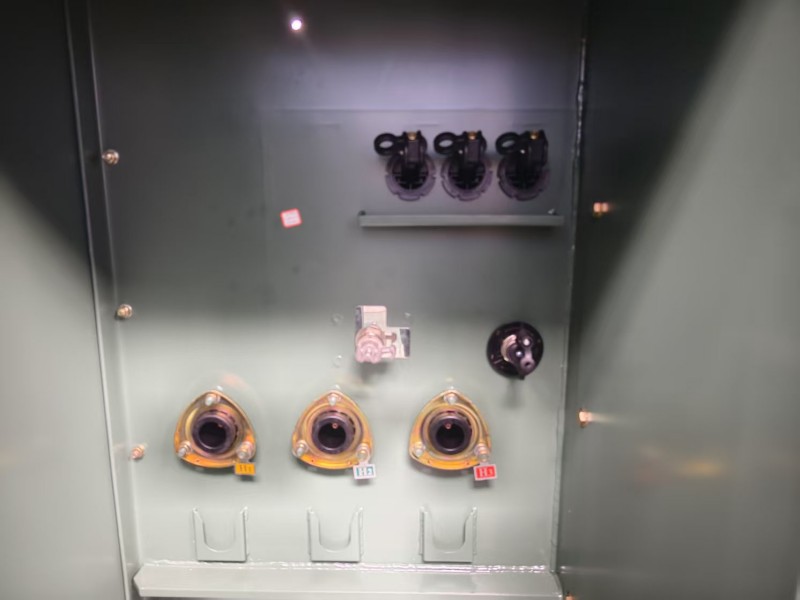

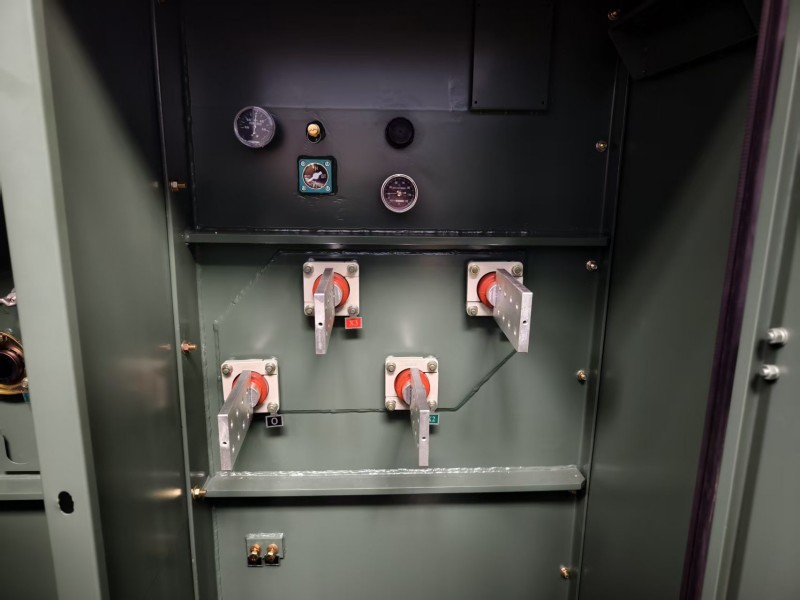

  • HV and LV connections and protections are accessible through front open compartments with interlocking doors.
  • Pad mounted Transformer is fully equipped with HV & LV protections resulting in faster commissioning at site.

Technical Parameters

2000KVA-13.8/0.415KV Three Phase Radial Feed Pad Mounted Transformer

ManufacturerHenan Miracle Power Equipment Co., Ltd.
ModelMPEZGS11-Z-2000/13.8/0.415
Country of OriginChina
TypeThree Phase Radial Feed Pad Mounted Transformer
Winding materialCopper
Related capacity2000KVA
Primary voltage13.8kV
Secondary voltage0.415V
Vector groupDyn5
Frequency60hz
Transformer oilMineral Oil
Cooling methodONAN
Impedance voltage5.85%
Total Weight5015kg
Tap changeroff-load
Tap range HV±2×2.5%

Applications

The transformer is very suitable for outdoor installation in urban power grids. It can withstand extreme temperatures (-40°C to +50°C). It is safe, reliable and beautiful, and does not require protective fences.

FAQ

Q: How long is  your Warranty period?

A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly

Q: How’s your quality?

A: We have a strict quality control system at factory.

From raw material, process of production, and test, each step will be tested.

After assemble finished, each transformer will be tested, and after result okay, will allow to delivery.
