300kVA 12.47kV 0.48kV Loop Feed Pad Mounted Transformer

Description

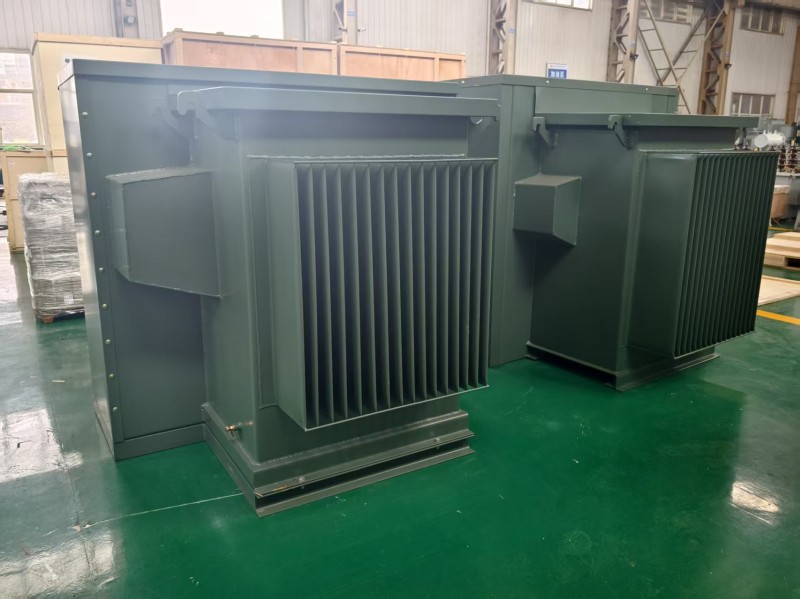

Miracle PE has completed the production of the 300kVA 12.47kV 0.48kV loop feed pad mounted transformer.

Welcome to choose Miracle pad mounted transformer.

More compact in design and suitable for Urban Distribution System.
Reduced installation footprints compared to Compact Substations and Distribution Transformer.

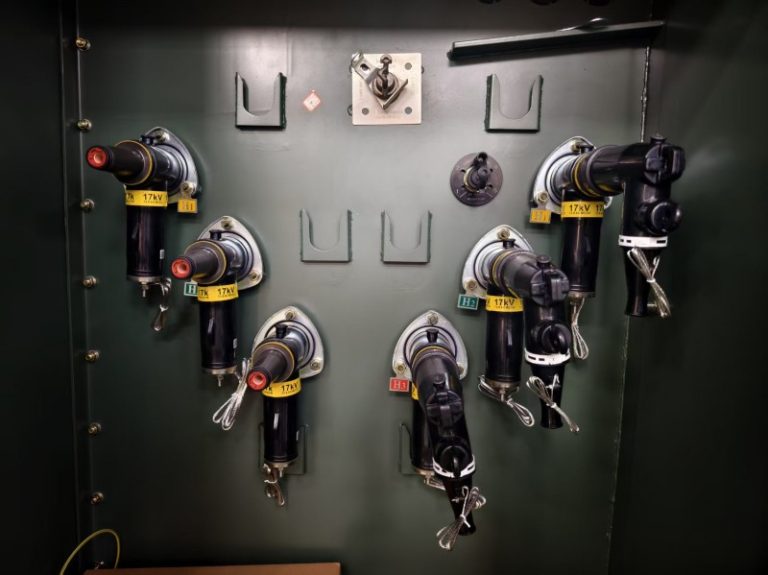

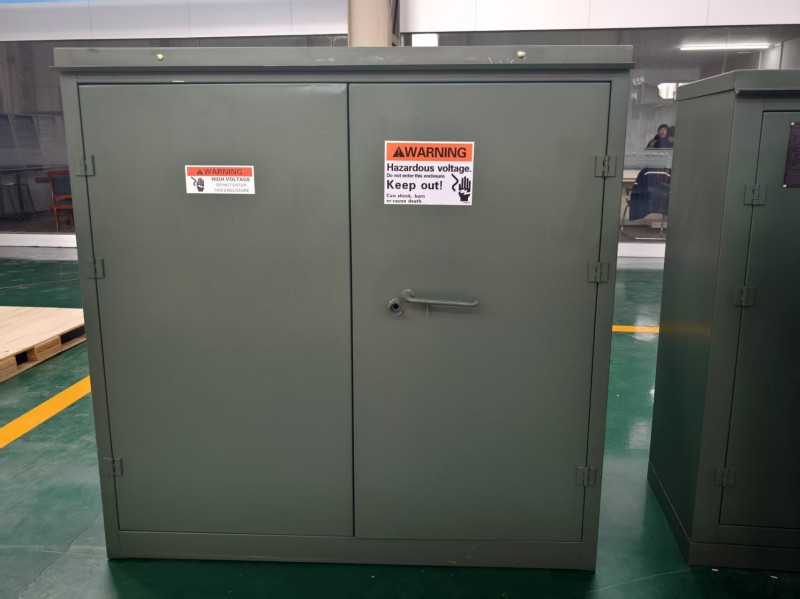

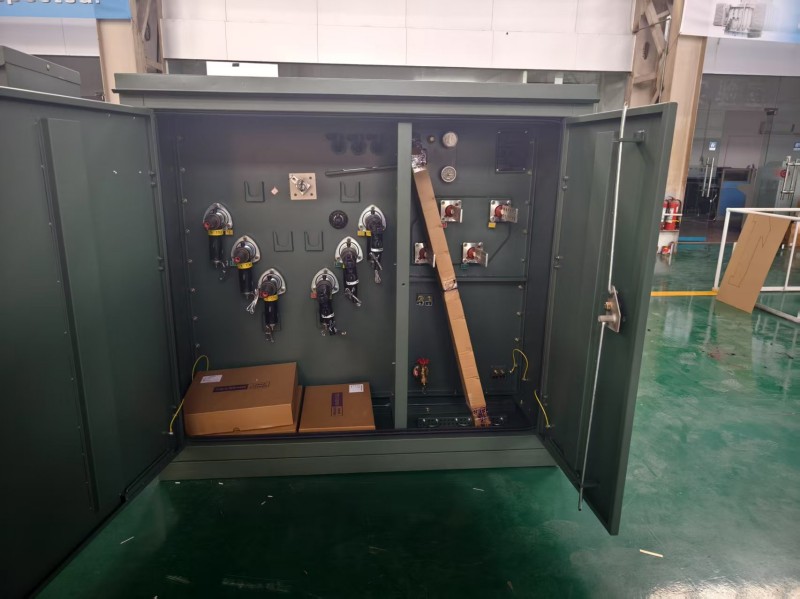

HV and LV connections and protections are accessible through front open compartments with interlocking doors.
Pad mounted Transformer is fully equipped with HV & LV protections resulting in faster commissioning at site.

Technical Parameters

300KVA-12.47/0.8KV Three Phase Loop Feed Pad Mounted Transformer

Manufacturer	Henan Miracle Power Equipment Co., Ltd.
Model	MPEZGS11-H-300/12.47/0.48
Country of Origin	China
Type	Three Phase Loop Feed Pad Mounted Transformer
Winding material	Copper
Related capacity	300KVA
Primary voltage	12.47kV
Secondary voltage	0.48kV
Vector group	Yyn0
Frequency	60hz
Transformer oil	Mineral Oil
Cooling method	ONAN
Total Weight	1800kg
Tap changer	off-load
Tap range HV	±2×2.5%

Applications

The transformer is very suitable for outdoor installation in urban power grids, also suitable for residential. It can withstand extreme temperatures (-40°C to +50°C). It is safe, reliable and beautiful, and does not require protective fences.

FAQ

Q: How long is your Warranty period?

A: Up to 24 months quality guarantee period. If there is any problem in the operation of your transformer, we will solve it promptly and quickly

Q: How’s your quality?

A: We have a strict quality control system at factory.

From raw material, process of production, and test, each step will be tested.

After assemble finished, each transformer will be tested, and after result okay, will allow to delivery.
