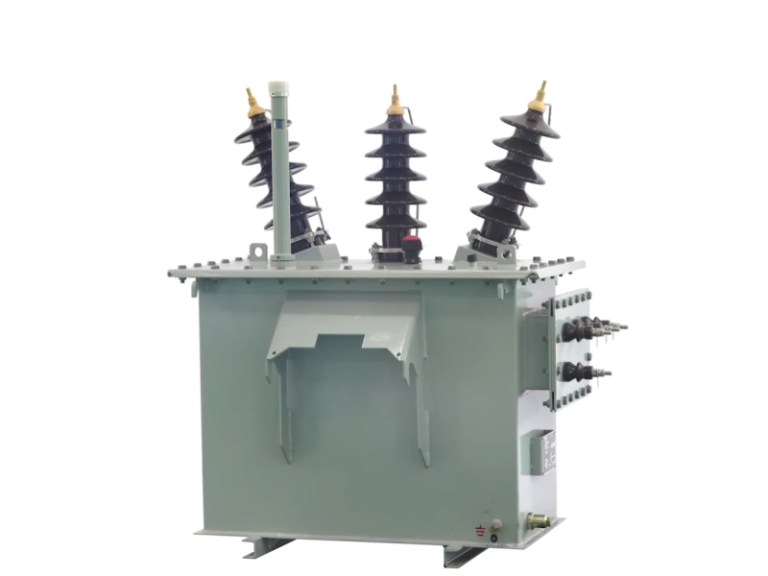

H61 Oil Immersed Distribution Transformer

Description

Miracle PE's H61 series oil immersed distribution transformer is designed with advanced technology, using high-quality materials and components, reliable quality and long operation time.

Composition of H61 distribution transformer:

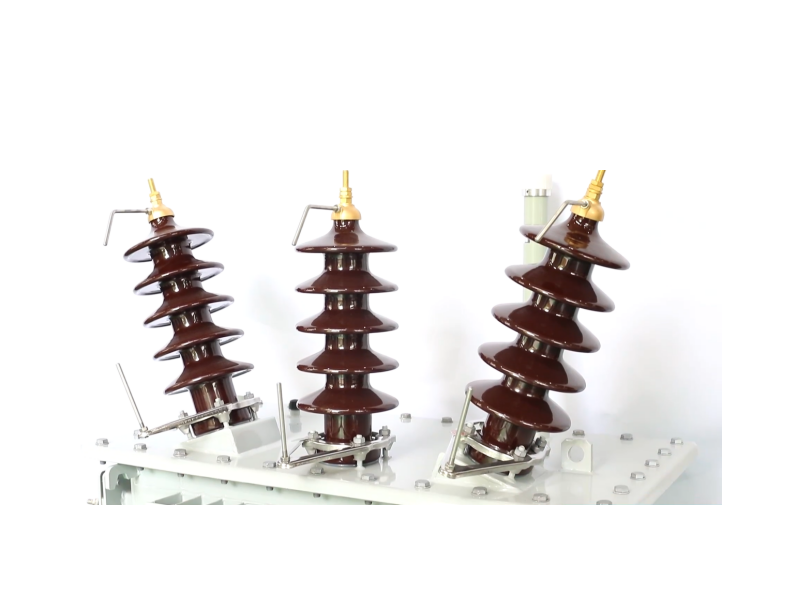

3 HV ceramic insulator (top)

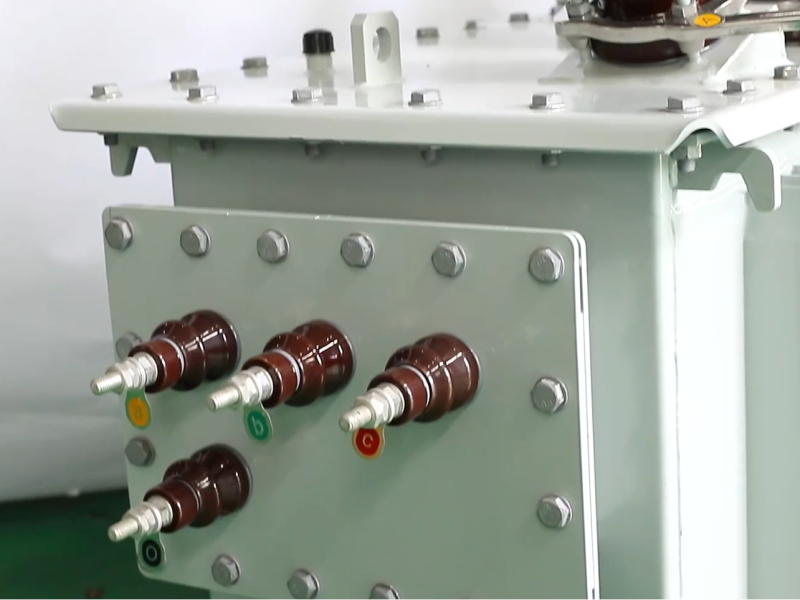

4 LV ceramic insulators (side)
Triangular lightning arrester
Temperature measurement
Pressure relief valve
Oil level gauge
Grounding
Nameplate
Standard: IEC 60076
Rated power: 50-2500kva.
High voltage: 3.3kV to 36kV, Other specific voltages can be provided according to customer requirements.

Miracle ensures that every transformer we deliver has passed the comprehensive acceptance test, and the design of the transformer complies with the IEC60076 international standard.

Technical Parameters

H61 Series Oil Immersed Distribution Transformer

Manufacturer	Henan Miracle Power Equipment Co., Ltd.
Model	MPE-H61
Country of Origin	China
Type	Three Phase Oil Immersed Distribution Transformer
Winding material	Copper
Related capacity	50~2500 KVA
Primary voltage	3KV~36KV
Secondary voltage	200V/400V/430V
Vector group	Dyn11
Frequency	50hz/60hz
Transformer oil	Mineral Oil
Cooling method	ONAN
Tap changer	off-load
Tap range HV	±2×2.5%
Manufacturing standards	IEC60076

FAQ

Q: What is the delivery lead time for this transformer?
A: 20~30 days after buyer confirms the drawing. For large quantity, more than 50 units, usually 30~90 days.

Q: Does it support custom voltage ratios?
A: Yes, tailored configurations (e.g., 20kV/0.415kV) upon request.
