Pole Mounted Substation

  • Model: Poled mounted substation
  • High Voltage: 10~35kv
  • Installation: side installation, front installation
Share

Description

MIRACLE produces and supplies complete sets of equipment for pole-mounted substation.


The substation mainly consists of hv isolation switch, drop out fuse, arrester, oil type transformer, lv switchgear (JP), cables, brackets and accessories.


The main function of the product is to reduce the 11~35kV high voltage alternating current to low voltage alternating current through the high voltage side, and then distribute it to each branch distribution system through the lv switchgear.

Advantages and Applications

Rather than installing a large transformer or power station on the ground, these transformers can easily mount to the power pole to string power to a home or facility. Pole-mounted transformers make that process much easier if you are trying to supply power to a single building or a remote area.


With compact structure, reasonable layout, convenient construction and operation, this equipment is widely used in urban and rural distribution networks.

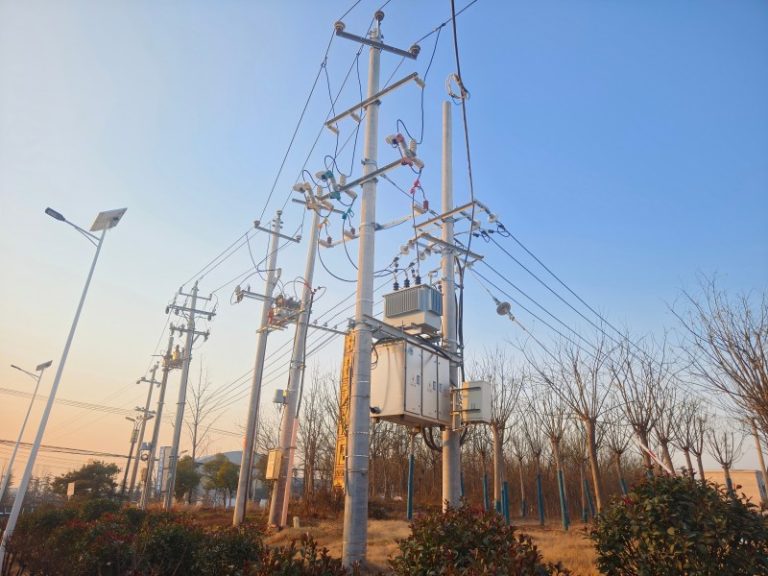

poled mounted substation

Pole Mounted Substation Details

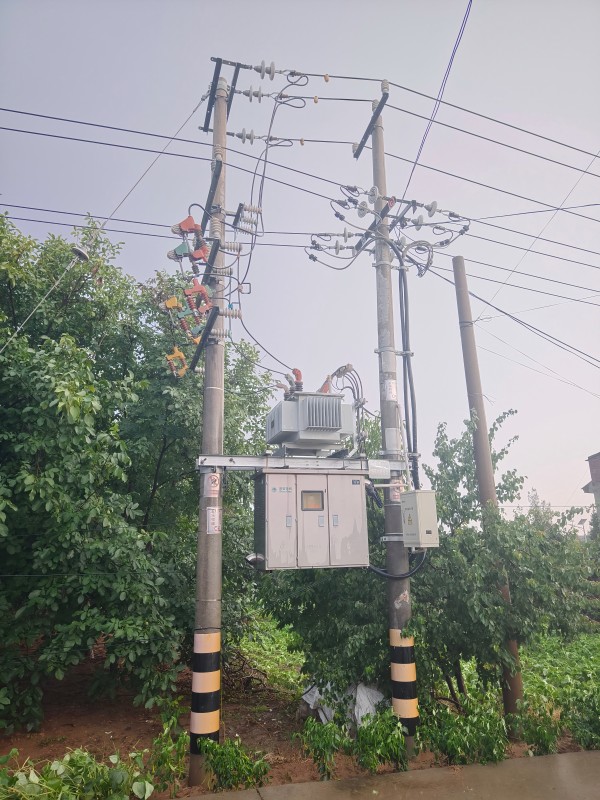

pole mounted substation

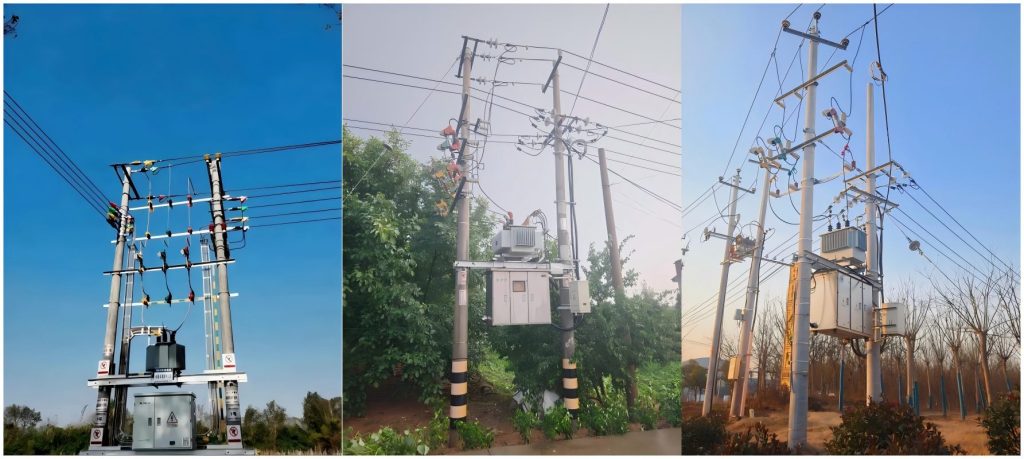

Front Mounted / Side Mounted / Side Mounted

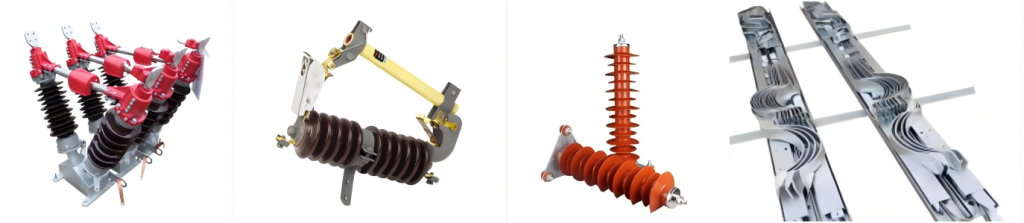

HV Isolation Switch / Drop out Fuse / Arrester / Brackets

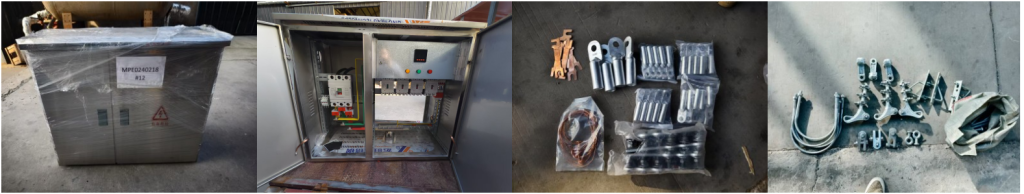

LV switchgear (JP) / Terminals / Accessories

FAQ

Q: Can you provide a full set of equipment for pole mounted substation installation?
A: Yes, we provide all electrical and metal accessories for the pole mounted substation, providing a one-stop service.

Q: What’s your product range?

    A: we mainly produce transformers up to 35KV. Max capacity is 30MVA.
