Model: ZGD11
Standard: IEEE C57 (DOE optional)
Capacity: 10KVA – 167KVA
Primary Voltage: 7.2kV, 13.8kV, 13.2kV, 24.94kV
Secondary Voltage: 110V, 220V, 240V
Coil material: Full Copper or Aluminum
Insulation Oil: Mineral Oil, Vegetable Oil, FR3
Color: Musell Green7GY3.29

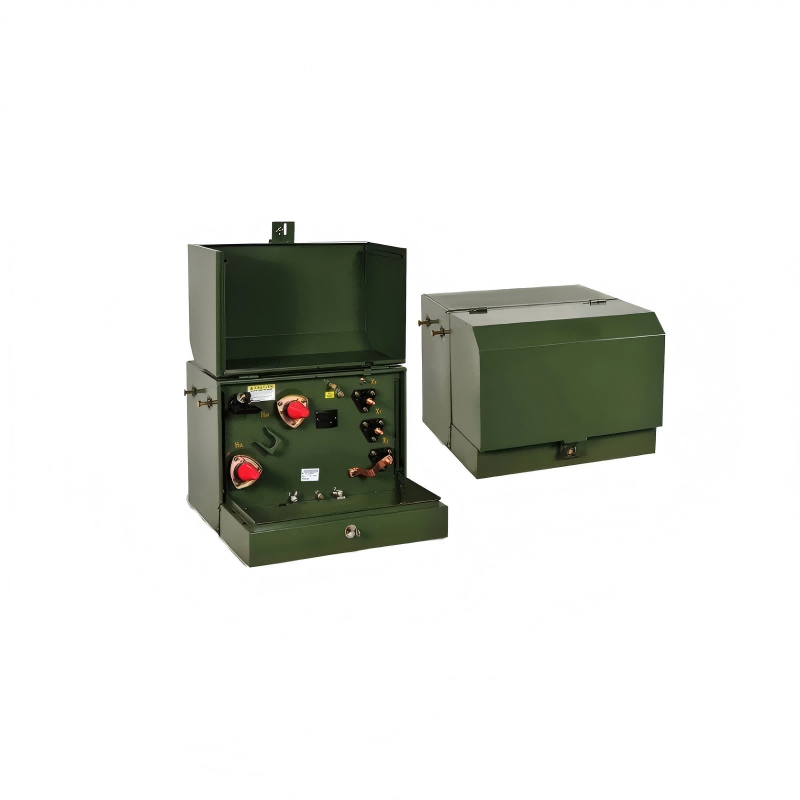

Miracle Single phase pad mounted transformer(also known as residential transformer, is a compact and enclosed structure designed for outdoor installation. ) fully complies with and exceeds ANSI, DOE, IEEE standards.

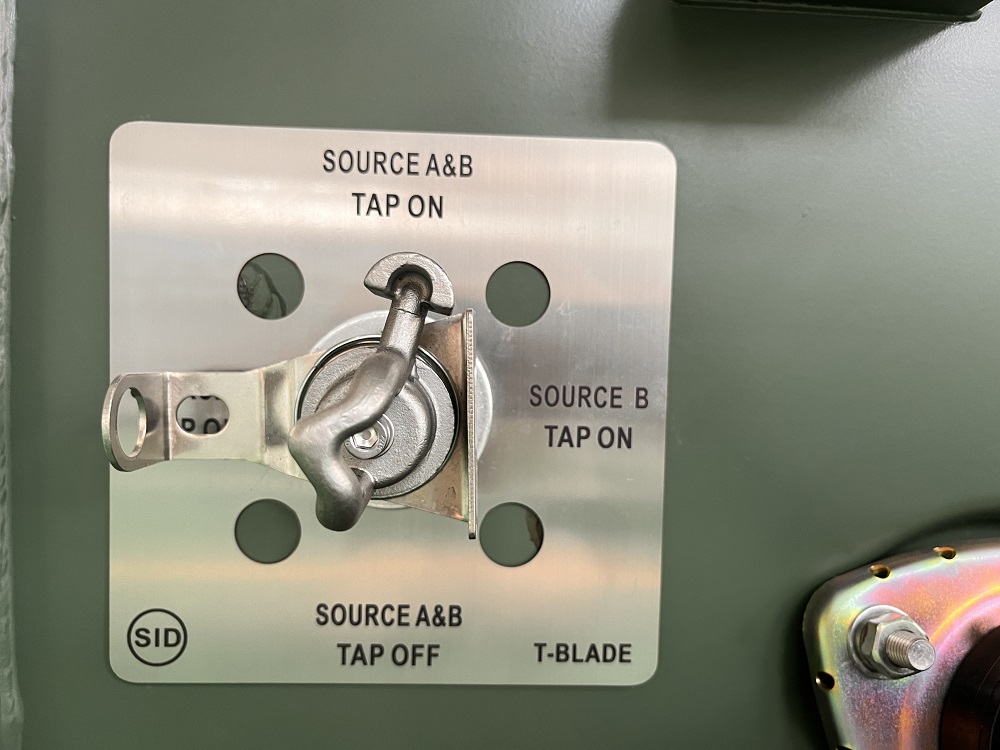

The transformer adopts dual voltage design and require the use of a dual voltage switching switch for voltage switching. This design ensures the transformer can adapt to different power demands, thereby improving its practicality and adaptability.
Tip: The specific time arrangement depends on the actual situation.
With the company registered to ISO9001, EU CE certification and USA UL certification
